8BitDo Ultimate 3E: With Swappable Button Modules and Anti-Drift TMR Sticks, This Official Xbox Controller Takes Aim at the Elite Series 2
Long known for value-packed wired gamepads and mid-range wireless pads across Microsoft's ecosystem, 8BitDo is now moving aggressively into the flagship pro controller arena. Priced at $149.99 in the United States (€139.99 across Europe and £124.99 in the UK), the new 8BitDo Ultimate 3E Controller for Xbox arrives as an officially licensed wireless Xbox controller built around a deeply modular hardware architecture.
Engineered to go head-to-head with Microsoft's aging Xbox Elite Wireless Controller Series 2, this third-generation Ultimate flagship ditches traditional compromises. According to 8BitDo's official specification sheet, it pairs a tool-free magnetic faceplate for swapping physical ABXY button modules with 12-bit TMR thumbsticks and a contactless magnetic wireless charging dock right out of the box.

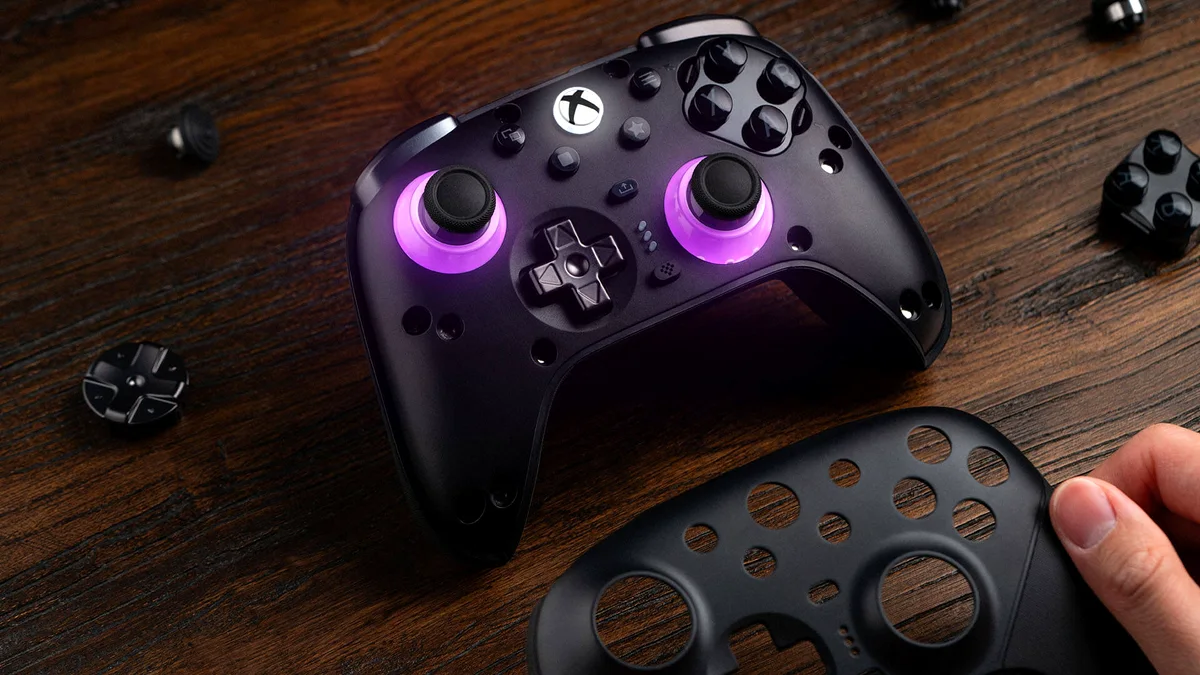

Magnetic Faceplate and Swappable ABXY Modules: Two Distinct Button Feels in One Chassis
The standout mechanical innovation inside the Ultimate 3E is its modular button bay hidden beneath a snap-on magnetic faceplate. Instead of forcing players to choose permanently between clicky switches or classic membranes at checkout, 8BitDo bundles two complete, hot-swappable ABXY modules inside the travel case.
The first module uses a traditional silicone membrane tuned for a quiet, cushioned stroke during marathon single-player sessions. The second module drops in tactile mechanical micro-switches with ultra-short pre-travel and crisp actuation, tailored for competitive shooters and fighting games.
Customization extends across every contact point on the front shell. Players can swap between two metal directional pads: a standard four-way cross D-pad for retro precision or a faceted circular D-pad built for smooth diagonal rolls. Six interchangeable thumbstick caps are also included in the box: two pre-installed standard sticks, two Tall sticks for finer aiming leverage, one Thick-neck stick, and one convex Dome cap.

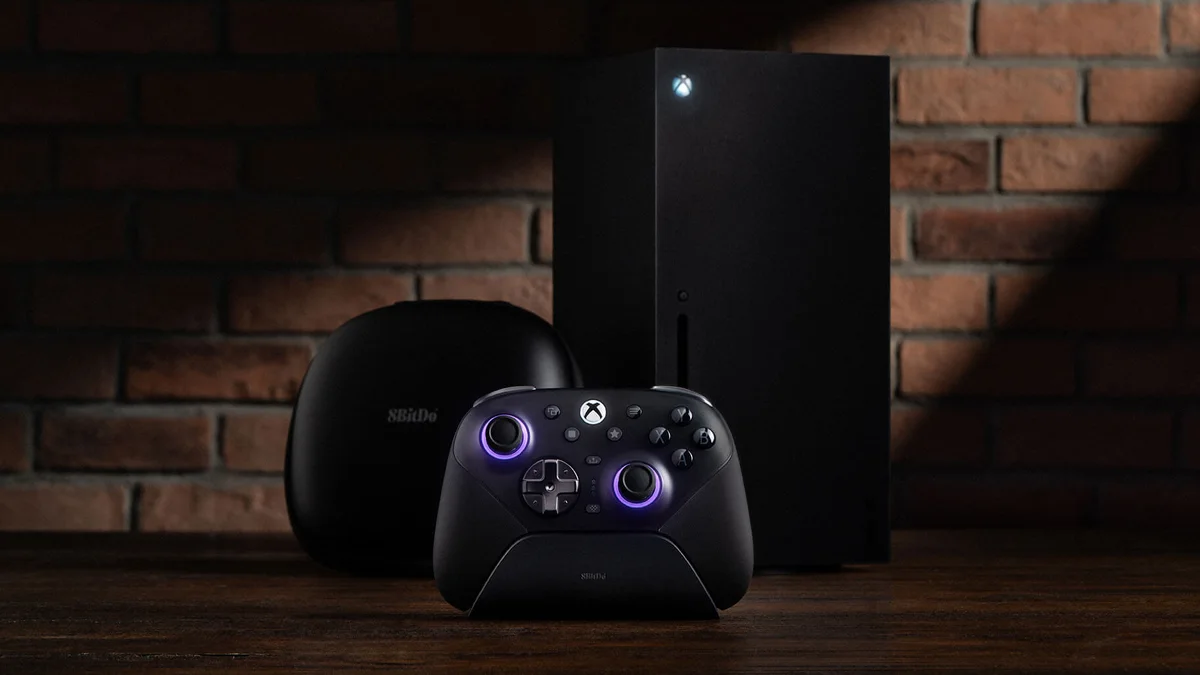

8BitDo Ultimate 3E Controller for Xbox
- Anti-drift TMR joysticks with 12-bit ADC chip and RGB Fire Rings
- Swappable ABXY modules (micro-switch or silicone), 2 metal D-pads & 6 sticks
- Contactless charging dock with 2.4GHz USB-C adapter (1000Hz on PC)

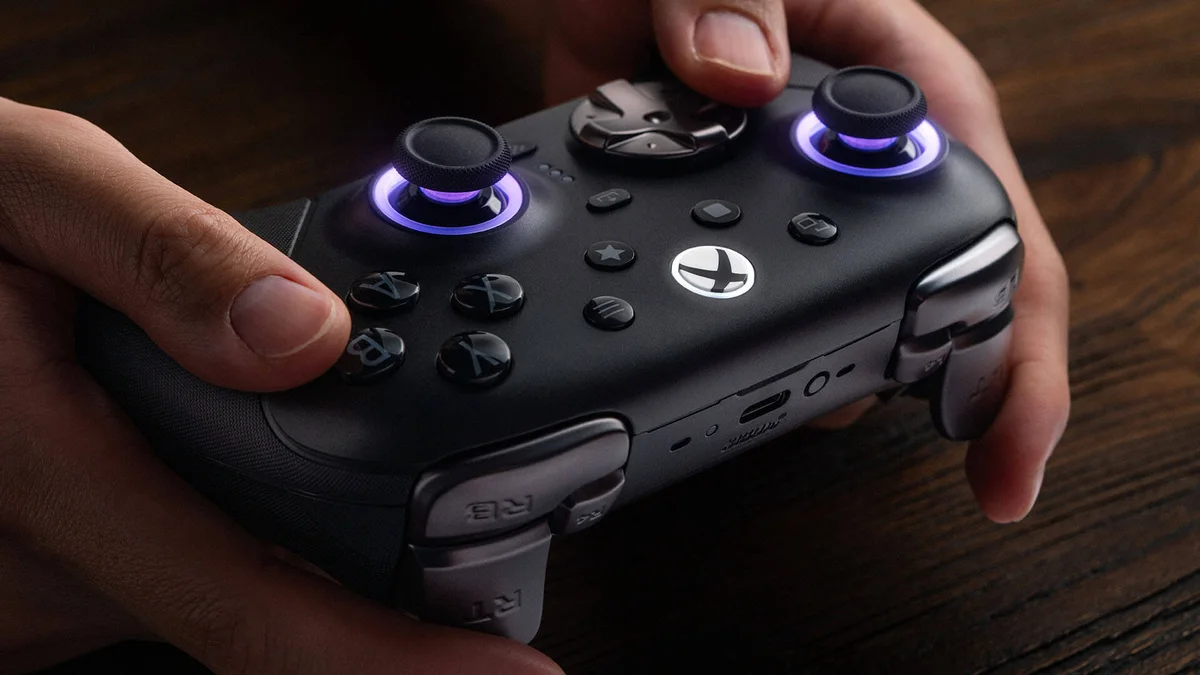

12-Bit TMR Joysticks, Hall-Effect Impulse Triggers, and Extra Fast L4/R4 Bumpers
Following in the footsteps of the 8BitDo Pro 3 Tomb Raider Edition equipped with 12-bit TMR sticks, the Ultimate 3E leaves carbon-film potentiometers behind in favor of Tunnel Magnetoresistance (TMR) thumbsticks. Paired with a dedicated 12-bit ADC sampling chip, wear-resistant anti-friction rings, and interactive RGB Fire Rings, the TMR sensors deliver higher resolution and lower power draw than first-generation Hall-effect modules.
On the shoulder assembly, 8BitDo integrates Hall-effect impulse triggers backed by physical two-stage trigger stops (four vibration motors total across the grips and triggers). Players can flip the mechanical switches between full-travel analog pull for racing sims and hair-trigger actuation for fast-paced shooters.
To keep thumbs planted on the sticks during high-tempo engagements, the chassis combines two pro-level back buttons with two extra fast shoulder bumpers (L4 and R4) positioned right beside LB and RB. All four auxiliary inputs can be remapped on the fly directly from the controller without opening companion software.
1000Hz PC Polling Rate, 6-Axis Motion Aiming, and Contactless Wireless Charging Dock
For connectivity, the 8BitDo Ultimate 3E operates over low-latency 2.4GHz wireless or wired USB on Xbox Series X|S, Xbox One, and Windows 10/11 PCs. It also includes Bluetooth support for Android 13+ devices and carries official compatibility across the Apple ecosystem (iPhone, iPad, Mac, Apple TV, and Apple Vision Pro).
Much like GameSir's recent G7 Pro controllers featuring TMR sensors, console hardware limitations mean several competitive features remain exclusive to PC players. The controller unlocks up to a 1000Hz polling rate (1ms reporting interval) in both wired and 2.4GHz wireless modes on PC only, alongside customizable 6-axis motion control under 2.4GHz PC mode via the 8BitDo Ultimate Software X suite.

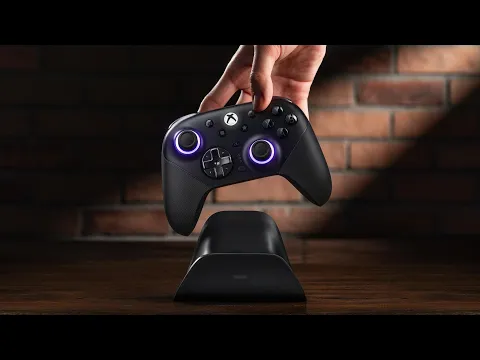

Rounding out the hardware package is a redesigned integrated wireless charging dock that operates with zero physical contact pins. Magnetic alignment seats the 285g controller (equipped with a wider grip angle and silicone side textures) over the induction coil to top up its 1,400mAh Li-ion battery (rated for 18 play hours), while housing the USB-C 2.4GHz adapter inside the base to extend wireless signal integrity.
Check Availability 8BitDo Ultimate 3E Availability on Amazon→
8BitDo Ultimate 3E Controller for Xbox: Official Technical Specifications
| Feature | Official 8BitDo Specification |
|---|---|
| Official Compatibility | Xbox Series X|S, Xbox One, Windows 10 (1903)+ / 11, Android 13+, iPhone, iPad, Mac, Apple TV, Apple Vision Pro |
| Connectivity Modes | 2.4GHz Wireless (USB-C adapter) & Wired USB (Xbox / PC); Bluetooth (Android / Apple) |
| Thumbsticks | Anti-drift TMR joysticks + 12-bit ADC sampling chip + wear-resistant rings + RGB Fire Rings |
| Swappable Modular Parts | 2 ABXY modules (micro-switch & silicone), 2 metal D-pads (standard cross & circular), 6 joystick caps |
| Triggers & Pro Inputs | Hall-effect impulse triggers (2-stage trigger stops), 2 pro back buttons + 2 extra fast bumpers (L4/R4) |
| Polling Rate & Gyroscope | Up to 1000Hz polling rate (wired & 2.4GHz on PC only); customizable 6-axis motion control (2.4GHz on PC only) |
| Battery & Charging Dock | 1,400mAh rechargeable Li-ion battery (18h play time, 4-5h charge) + contactless magnetic wireless dock |
| Dimensions, Weight & Audio | 152.5 × 104.0 × 62.0mm at 285.0g (wider grip angle, silicone texture); 3.5mm audio jack with volume control |
| Retail Price & Bundle | $149.99 (US) / €139.99 (EU) / £124.99 (UK) including wireless charging dock, travel case, and full module kit |
My Test Bench
Looking strictly at the internal component breakdown published by 8BitDo, this $149.99 sheet puts Microsoft's own Xbox Elite Series 2 in an uncomfortable spot. Even in late 2026, Microsoft still ships its flagship pro pad with aging mechanical ALPS potentiometers prone to stick drift, whereas 8BitDo packs 12-bit sampled TMR magnetic sensors, a pinless induction charging dock, and a hard shell case into a lower retail bracket.
Making the entire ABXY button cluster hot-swappable beneath a magnetic faceplate solves a genuine mechanical headache for multi-genre players. Being able to pop in crisp micro-switches for frame-tight fighting game inputs and swap back to a dampened silicone membrane for late-night RPG sessions,combined with a wider grip angle on a 285-gram shell,addresses the exact ergonomic complaints that held back earlier Ultimate revisions.
In full transparency to our readers, this initial architectural breakdown relies on 8BitDo's official hardware specifications while we wait to put the retail unit on our measurement rig. Once on the bench, the key metrics to verify will be real-world 2.4GHz wireless input latency at 1000Hz on PC versus wired USB, raw 12-bit ADC stick linearity curves, and whether the removable ABXY module develops any housing play after repeated swaps. If 8BitDo's hardware team is reading this, our test bench has a USB-C port and input-lag analyzer ready whenever a review unit is available to put through its paces.
